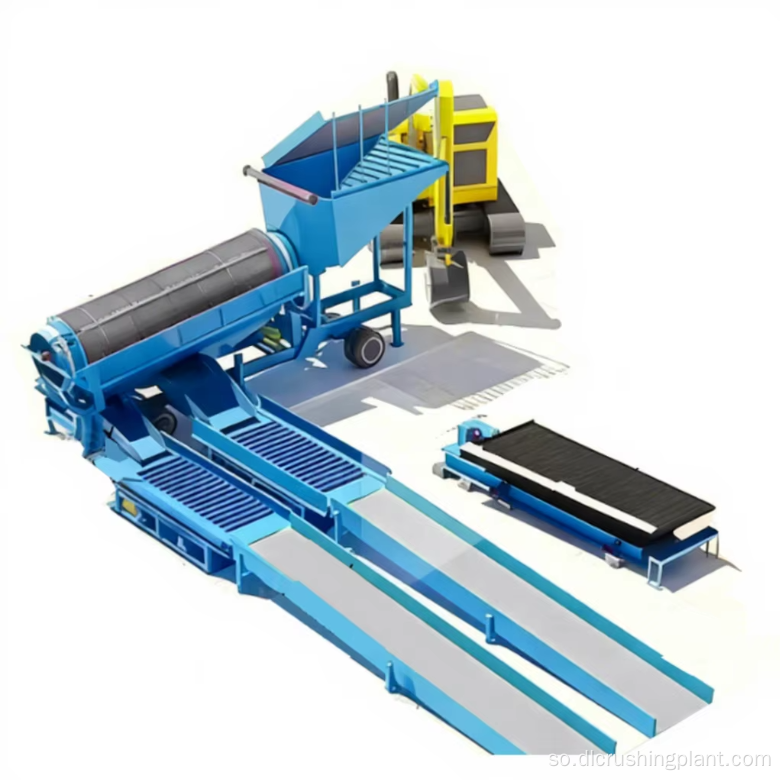

Khadka Hagaajinta Dahabka Hard Rock ee Dahabka ah ee Wareega Xidhan ee Kala Saaridda Cuf-jiidadka iyo Nidaamka Xakamaynta DCS ee caqliga leh

Habka Daawaynta Walaxda Ceyriinka & Burburinta

• DLEV106 burburiyaha daanka: burburinta aasaasiga ah, yaraynta macdanta ≤400mm talaabo talaabo
• DLDS430 burburiyaha koorta: burburinta labaad ee wareegga xiran oo leh shaashad gariiraysa
• Shaashadda gariir laba-sag ah 2YK3070: waxay samaysaa wareegga wareegga wareegga, cabbirka dareeraha ≤20mm
• Shaashadda khaaska ah ee dhaqista: waxay ka saartaa dhogorta dhoobada dusha sare ee macdanta, waxay ka hortagtaa xannibaadda nidaamka shiididda, waxay hagaajisaa soo-gaadhista walxaha dahabka ah
• Dhammaan dahaarka u adkaysta xidhashada: birta manganese sare, nolosha adeeg oo aad loo dheereeyey

shiidida & Nidaamka Kala soocida

• MQY3660 kubbadda shalash qoyan (160kW): shiiddo macdanta la jajabiyey ilaa -200 mesh ≥85%, hubinta kala-soocida walxaha dahabka buuxa ee gangue
• DLLXS2011 spiral classifier (37kW): Waxay samaysaa wareeg xiran oo leh kubbadda wax lagu shubo, fiirsashada saxarka si sax ah loo xakameeyo 35% -40%
• Qurub aan qallafsanayn ayaa lagu soo celiyay dib-u-qalin, ka fogaansho-shiidid xad-dhaaf ah iyo hagaajinta waxtarka shiida

Kala saarida cuf-jiidadka & Soo saarista Dahabka

• FX-250 hydrocyclone: ​​Kala soocida cufnaanta leh hufnaan> 90%, waxay ka faa'iidaysataa cufnaanta macdanta dahabka (19.3g/cm³)
• Kala-soocida Spiral ee kala-soocidda qallafsan: xoogga la saaray oo la cusboonaysiiyay 5-20g/t
• 6-SX1800 miiska ruxitaanka ee kala soocida ganaaxa: xooga saar si dheeraad ah kor loogu qaaday 20-50g/t
• Kala soocida marxalado badan ayaa soo kabanaya qaybo dahab ah oo aan dhab ahayn (0.1-3mm) oo leh waxtar sare

Xooga saar dhalaalidda & Samaynta

• 1.5-3 ton foornada dhalaalka ee soo noqnoqoshada dhexdhexaadka ah: 1200-1300C, waxay ka saartaa baaruud iyo wasakhda birta
• Waxyaabaha ku jira xalalka birta ee dahabka:>90%
• shubista caaryada garaafka: dahabka caadiga ah ee 100-500g, wareegga dhalaalka 4-6 saacadood
• Tijaabada nadiifinta joogtada ah waxay hubisaa u hoggaansanaanta heerka warshadaha

Ilaalinta Deegaanka & Keydinta Tamarta

• Thickener + filter filter: qoyaan dabada ≤30%, qalalan oo ku urursan kaydka dabada
• Heerka dib u warshadaynta biyaha:> 85%, si weyn u yaraynaysa isticmaalka biyaha cusub
• Beddelka soo noqnoqda dhagaxa kubbadda: isticmaalka tamarta ayaa hoos u dhacay 15% vs. qaabka xawaaraha go'an
• Qalajinta cyanide ee ikhtiyaarka ah: heerka dareeraha> 98%
• Kaarboonka CIL ee ikhtiyaarka ah: soo kabashada dahabka>92% macdanta oksaydhka heerka hoose

Nidaamka Xakamaynta caqliga

• Isugeynta awoodda rakiban: 1374kW, beddelka 1600KVA caadiga ah
• Nidaamka xakamaynta DCS + Qaybta falanqaynta caqliga AI: la socodka wakhtiga dhabta ah ee cabbirka walxaha, feejignaanta saxarka, culeyska qalabka
• Hal-guji bilow/joojin, kontoroolka habka-loop-ka tooska ah ee tooska ah
• Falanqaynta kamaradaha AI: waxay hagaajisaa xawaaraha quudinta wakhtiga dhabta ah, waxay ogaataa leexashada suunka iyo jeexjeexa iyada oo aan lahayn dareemayaal dheeraad ah
• Bilawga qulqulka agabka, joogsiga socodka alaabta hore
• Magdhawga garaadka garaadka hooseeya ee korantada yar: qodobka awoodda>0.97
• Cilladda ogaanshaha iyo digniinta ugu horayso: Duubista tooska ah ee cabbirrada 5 daqiiqo ka hor joogsiga
• Maamulka kala sareynta: Qaababka tooska ah/Manual/ dayactirka
• Miinada buuxda HD video la socodka: 24/7 ilaalinta cimilada oo dhan, shaashad weyn oo smart warshadaha

Dulmarka Mashruuca

• Codsiga: Macdanta macdanta dahabka adag ee baaxadda weyn iyo mashaariicda farsamaynta
• Soo-saare: Henan Zhongyu Dingli Intelligent Equipment Co., Ltd.
• Nooca macdanta: Macda dahabka adag ee dhagaxa ah, oo lagu beddeli karo macda dahabka oksaydhaysan ee darajada hoose
• Qiyaasta Habaynta: Burburinta → Dhaqidda → Shiididda & Kala-soocidda → Kala Saaridda Cuf-jiidadka → Dhalista → (Leaching Ikhtiyaar ah)
• Xudunta Burburinta: DLEV106 daanka + DLDS430 koontada + 2YK3070 shaashad, wareeg xidhan, ≤400mm ilaa ≤20mm
• Shiidida Muhiimka ah: MQY3660-mashiinka kubbadda shabagga qoyan + DLLXS2011 kala soocida wareega, -200 mesh ≥85%
• Kala-soocidda Muhiimka ah: FX-250 hydrocyclone + kala-soocida spiral + 6-SX1800 miiska gariiraya, soo kabashada> 85%
• Qurxinta Muhiimka ah: 1.5-3 ton foorno soo noqnoqosho dhexdhexaad ah, ka kooban dahab> 90%
• Xakamaynta caqliga: DCS + falanqaynta kamaradaha AI + miinada buuxda HD la socodka muuqaalka + shaashad weyn oo caqli badan
• Heerka deegaanka: Dib-u-warshadaynta biyaha> 85%, dabada ka soo dareerta qalalan (qoyaanka ≤30%), qodobka awoodda>0.97

Socodka Geedi socodka

1. Daawaynta iyo Burburinta Walaxda Ceyriinka - DLEV106 burburiyaha daanka wuxuu sameeyaa hoos u dhigista aasaasiga ah ee ≤400mm macdanta ceeriin; DLDS430 burburiyaha koorta iyo shaashadda labajibbaaran ee gariiraysa 2YK3070 waxay sameeyaan wareeg burburin wareeg ah, hoos u dhigista macdanta tallaabo tallaabo ≤20mm; muraayad dhaqid oo gaar ah ayaa meesha ka saaraysa dhogorta dhoobada ah ee dusha sare ee macdanta, ka hortagga xannibaadda nidaamka shiidka ee xiga iyo hagaajinta heerka soo-gaadhista ee qaybaha dahabka; Dhammaan dahaarka u adkaysta waxay ka samaysan yihiin bir manganese sare leh oo loogu talagalay cimriga adeegga
2. Shididada & Kala-soocidda - MQY3660 Mashiinnada Kubadda Lattice-qoyan (160kW) waxay shiidaysaa ≤20mm orega ilaa -200 mesh ≥85%, hubinta kala-soocida buuxda ee walxaha dahabka ah ee gangue; DLLXS2011 spiral classifier (37kW) waxay samaysaa wareeg xiran oo leh mashiinka kubbadda, oo si sax ah u koontaroolaya fiirsashada saxarka 35% -40%; Qaybaha aan qallafsaneyn ayaa lagu soo celiyaa dib-u-kicinta, ka fogaanshiyaha wax-shiididda xad-dhaafka ah iyo hagaajinta waxtarka shiida
3. Kala-soocidda cuf-jiidadka & Soo saaridda Dahabka - FX-250 hydrocyclone waxay qabataa kala soocidda cufnaanta si hufan>90%, iyada oo ka faa'iidaysanaysa farqiga cufnaanta weyn ee macdanta dahabka (19.3g/cm³); Kala-soocida spiral waxay qabataa kala-soocid qallafsan, kor u qaadida heerka xoogga leh ilaa 5-20g/t; 6-SX1800 miiska ruxashadu waxay qabataa kala saarid fiican, kor u qaadida xooga saarista 20-50g/t; Nidaamka marxaladaha badan ayaa si wax ku ool ah u soo kabanaya qaybo dahab ah (0.1-3mm) oo leh waxtar sare
4. Isku-dubarid dhalaalid & Samaynta - 1.5-3 tan foornada dhalaalidda soo noqnoqda dhexdhexaadka ah waxay ka saartaa wasakhda sida baaruudka iyo birta 1200-1300 ° C, samaynta xal bir ah oo leh wax dahab ah> 90%; Birta dhalaalaysa waxaa lagu shubaa caaryada garaafka iyadoo loo marayo meel lagu qaboojiyo oo laga sameeyo dahab caadi ah (100-500g); wareegga dhalaaliddu waa 4-6 saacadood oo leh baaritaan nadiif ah oo joogto ah
5. Soosaarka Dahabka Sare ee Ikhtiyaarka ah - Wixii dahab ah oo oksaydh ah oo hooseeya, desorption cyanide optional iyo nidaamka korantada (kulul NaOH + xalalka cyanide sodium) waxay gaadhaan heerka desorption> 98%; Habka wasakhaynta kaarboonka ee ikhtiyaariga ah ee CIL wuxuu gaaraa soo kabashada dahabka>92%; dhoobada dahabka ah ee elektrolytka ah ayaa la dhalaaliyaa ka dib marka la qaado wax soo saarka ugu dambeeya
6. Dabo-Dhicidda Qalalan & Dib-u-warshadaynta Biyaha - Dabada waxaa lagu daaweeyaa suufka dhumucdi iyo miiraha, taasoo hoos u dhigaysa nuxurka qoyaanka ilaa ≤30% si ay u ururiso qalalan; Heerka dib-u-warshadaynta kheyraadka biyaha ayaa kor u dhaaftay 85%, taasoo si weyn u yareyneysa isticmaalka biyaha cusub iyo saameynta deegaanka

Adeegga EPC

• Qandaraaska furaha EPCO: laga bilaabo cilmi baarista mashruuca, sahaminta iyo qorsheynta ilaa dhismaha madaniga ah, soo iibinta qalabka, rakibida iyo hawlgelinta, iyo maamulka hawlgalka
• Fikradda dhismaha dhirta degdega ah: horumarka isku mar ah ee dhammaan isku xirka dhismaha, muddada dhismaha oo la soo gaabiyo > 50% vs. mashaariicda dhaqanka
• Qalabka goobta, tas-hiilaadka iyo kharashka shaqada oo la dhimay, qiimaha la hagaajiyay iyo saxnaanta xakamaynta qorshaha
• 22 xarumood oo dalka oo dhan ah, 1,000+ rakibaadda iyo iibinta ka dib, 30+ baabuurta adeegga mobilada
• 7 × 24-saac taageero khadka ah, xallinta dhibaatada goobta gudaheeda 48 saacadood
• Qalabaynta iyo dayactirka qalabka wareegga-noloshu-buuxa, cusboonaysiinta farsamada iyo agabka agabka
• Halbeegyada habraaca la beddeli karo: ganaax shiidi, nidaamka reagent iyo cabbirada kala soocida oo lagu hagaajiyay xogta dhabta ah ee macdanta
• Dhammaan qalabka si madax-bannaan loo horumariyo, 100+ shatiyada qaranka, 2,000+ khadadka wax soo saarka ee dalka oo dhan

Xogta Kiiska

• Isku-dubarid heerka soo kabashada>85% iyada oo la adeegsanayo burburinta isku dhafan, shiididda, kala-soocidda iyo kala-soocidda cuf-jiidadka
• Waxyaabaha ku jira dahabka>90% ee dahabka caadiga ah (100-500g) oo ay soo saartay dhalaalid soo noqnoqosho dhexdhexaad ah
• DLEV106 + DLDS430 + 2YK3070 Burburinta wareegga-xiran waxay gaadhay dheecaan labis ah ≤20mm laga bilaabo ≤400mm quudinta
• MQY3660 mashiinka kubbadda + DLLXS2011 kala saaruhu wuxuu gaadhay -200 mesh ≥85% oo leh feejignaanta saxarka 35% -40%
• FX-250 hufnaanta kala soocida hydrocyclone>90%, ka faa'iidaysiga cufnaanta dahabka 19.3g/cm³ si sax ah loo kala saaro
• Kaarboonka CIL ee ikhtiyaarka ah waxay ku guulaysataa soo kabashada dahabka>92% macdanaha oksaydhka-hooseeya
• Mashiinnada kubbadda beddelka soo noqnoqda waxay yareeyaan isticmaalka tamarta 15%; Magdhawga isku-dhafka caqliga leh wuxuu gaaraa qodobka awoodda>0.97
• Heerka dib-u-warshadaynta biyaha> 85%, dareeraha dabada qalalan (qoyaanka ≤30%), buuxinta u hoggaansanaanta deegaanka
• Muddada dhismuhu waa la soo gaabiyey>50% iyada oo loo marayo fikradda dhismaha dhirta degdega ah
• Nidaamka DCS + AI oo leh HD la-socosho muuqaal ah ayaa xaqiijiya 7 × 24 hawl-gal caqliyeed oo bilaa cillad ah

FAQ

Q1: Qalab noocee ah ayaa nidaamka burburinta wareegga xiran u isticmaalaa farsamaynta macdanta dahabka adag?

Nidaamka burburintu waxa uu u isticmaala burburiyaha daanka DLEV106 dhimista aasaasiga ah, oo lagu lammaaniyo DLDS430 koorta burburiyaha iyo muraayad labajibbaaran oo gariiraysa 2YK3070 samaynaysa wareeg wareeg xiran. Qaabayntani waxay yaraynaysaa macdanta ceeriin laga bilaabo ≤400mm ilaa ≤20mm. Shaashad dhaqid gaar ah ayaa sidoo kale lagu daray si looga saaro daahan dhoobada ah oogada macdanta, ka hortagga xannibaadda nidaamka shiididda iyo hagaajinta soo-gaadhista walxaha dahabka ah. Dhammaan xirmooyinka u adkaysta waxay ka samaysan yihiin bir manganese sare leh, oo si weyn u fidinaysa nolosha adeegga qalabka ee codsiyada dhagaxyada adag.

Q2: Sidee buu nidaamka kala soocida cuf-jiidadka uga faa'iidaystaa cufnaanta macdanta dahabka ee soo saarista waxtarka sare leh?

FX-250 hydrocyclone waxay qabataa kala soocida cufnaanta si hufan> 90%, iyada oo ka faa'iidaysata farqiga weyn ee cufnaanta macdanta dahabka (19.3g/cm³) si ay u kala saarto qaybaha dahabka cufnaanta sare ee dabada. Kala-soocida wareegtada ayaa markaa qabta kala-soocid adag si kor loogu qaado xoogga ilaa 5-20g/t, iyo 6-SX1800 miiska ruxashadu waxay qabataa kala-soocid wanaagsan si loo kordhiyo 20-50g/t. Habkan marxalado badan leh ayaa si wax ku ool ah u soo kabanaya qaybo dahab ah (0.1-3mm) oo leh heerka soo kabashada xoogga leh ee ka badan 85%.

Q3: Waa maxay xakamaynta caqliga leh iyo sifooyinka deegaanka ee ay bixiyaan nidaamka DCS iyo AI?

Nidaamka kontoroolka DCS ee leh moduleka falanqaynta caqliga AI wuxuu kormeeraa cabbirka walxaha, fiirsashada saxarka iyo culeyska qalabka waqtiga dhabta ah, taageeraya hal-guji bilaw / joogsi iyo kontorool toos ah oo xiran. Qeybta AI waxay isticmaashaa kamarado si ay u falanqeyso alaabta soo socota oo ay u hagaajiso xawaaraha quudinta, ogaanshaha suunka leexashada iyo jeexjeexa iyada oo aan lahayn dareemayaal dheeraad ah. Astaamaha deegaanka waxaa ka mid ah dabada dheecaanka qallalan (qoyaanka ≤30%), dib u warshadaynta biyaha>85%, milicsiga kubbadda soo noqnoqda (tamar -15%), iyo magdhowga isku-dhafka ah ee caqliga leh (cutubka awooda>0.97). Qalafsanaanta cyanide ee ikhtiyaarka ah (qasax>98%) iyo CIL ka saarista kaarboonka (soo kabashada> 92%) ayaa diyaar u ah macdanta heerka hoose.
