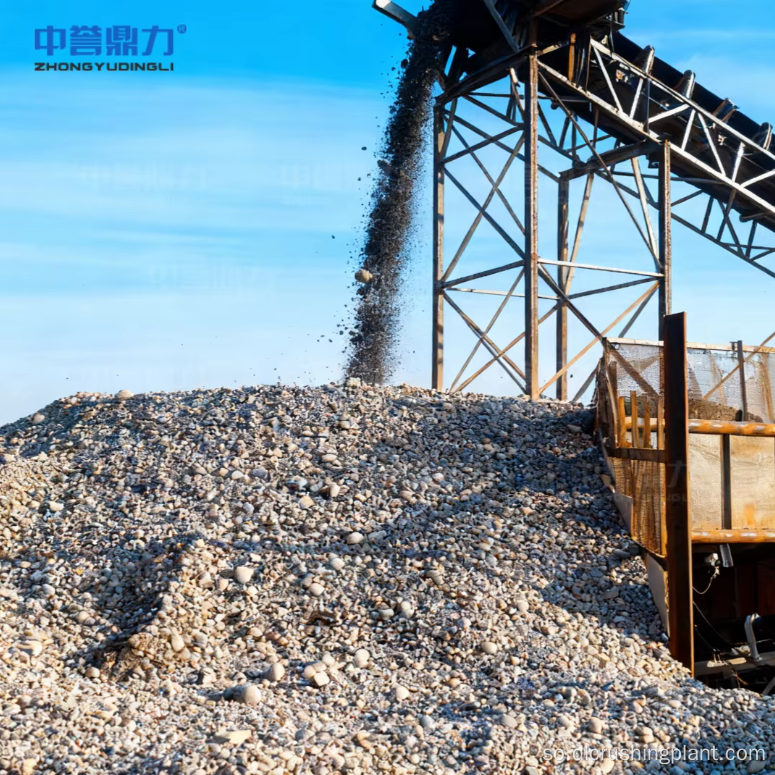

Kaarboonka Dahabka ah ee CIP ee ku jira khadka farsamaynta saxarka oo leh Burburinta Cyanidation Leaching iyo Nidaamka Xakamaynta Sirdoonka DCS

Habka Daawaynta Walaxda Ceyriinka & Burburinta

• DLZGC1250 quudiyaha gariiraya: waxay xakameysaa xawaaraha quudinta 250-300t/saacadii, waxay ka fogaataa culeyska qalabka
• DLEV106 burburiyaha daanka: burburinta aasaasiga ah, cabbirka quudinta ≤400mm ilaa ≤75mm, birta manganese sare ee birta u adkaysata
• DLDS430 burburiyaha koorta + 2YK3070 labajibbaaran shaashad gariir: wareeg xiran, wuxuu sifeeyaa macdanta ilaa ≤20mm
• Shaashadda khaaska ah ee dhaqista: waxay ka saartaa daboolka dhoobada, waxay ka hortagtaa xannibaadda, waxay hagaajisaa soo-gaadhista walxaha dahabka ah

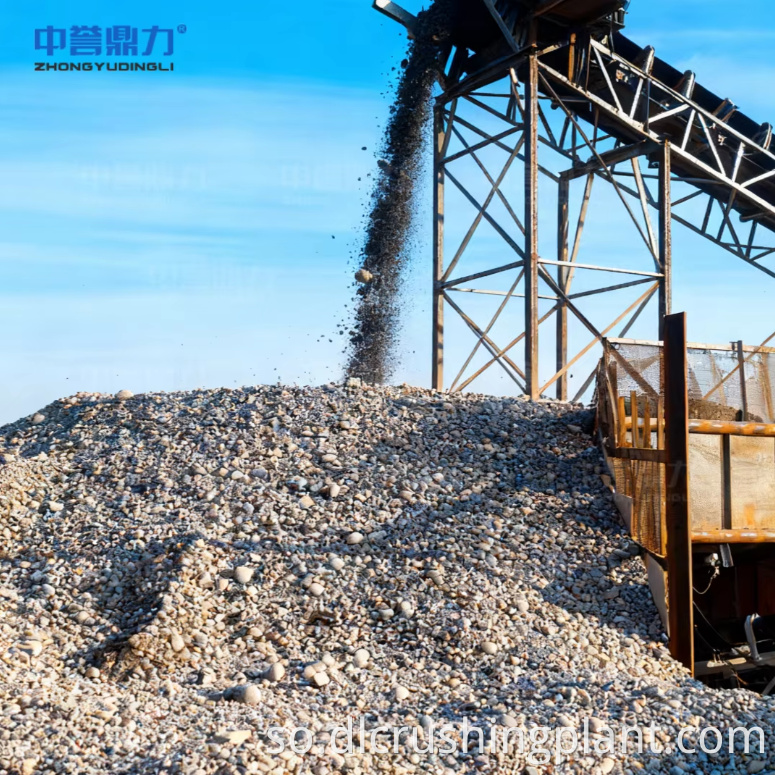

• Qashin-qubka: wuxuu helayaa macdan-20mm u qalma; aan u qalmin>20mm ayaa loo soo celiyay dib-u-burburinta

Shiidida & Kala soocida Nidaamka Wareega Xiran

• MQY3660 kubbadda shalash qoyan (160kW): shiiddo -20mm ore ilaa -200 mesh ≥85%, kala qaybsanaan qayb dahab ah oo buuxda

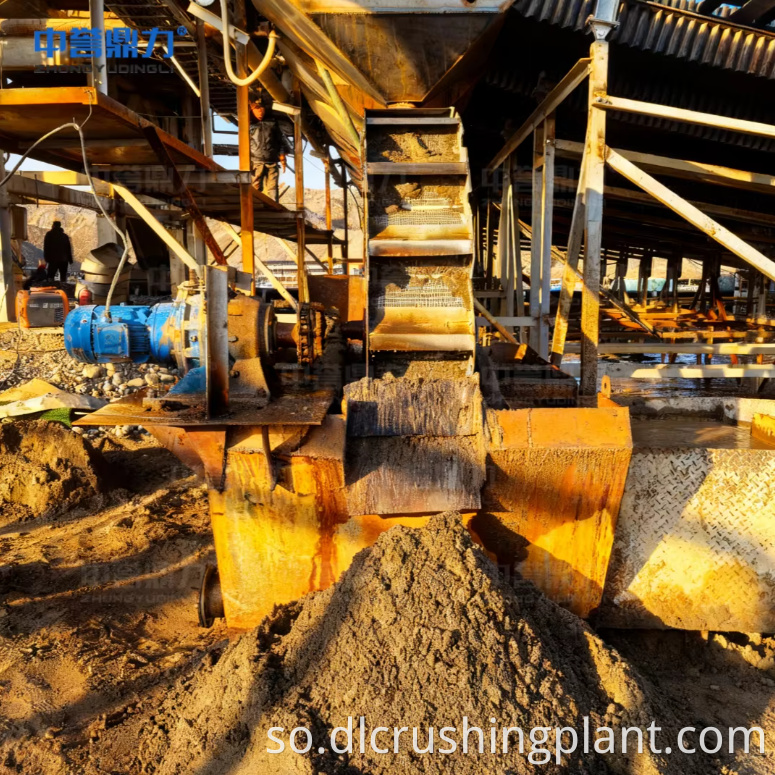

• DLLXS2011 spiral classifier (37kW): wuxuu si sax ah u kontaroolaa fiirsashada saxarka 35% -40%, wuxuu kala saaraa saxarka tayada leh wuxuuna soo celiyaa qaybo aan dhab ahayn
• Naqshad xiran: waxay ka fogaataa qashinka tamarta si xad dhaaf ah, waxay wanaajisaa waxtarka shiidada guud

Kaarboon CIP ee Nidaamka Soosaarida Dahabka Saxarka ah

• FX-250 hydrocyclone: ​​kala soocida cufnaanta leh hufnaan> 90%, saxarka cufnaanta sare wuxuu galaa dheecaan
• Haanta leaching Cyanidation: saxarka lagu hagaajiyay pH ugu fiicnayd, sodium cyanide ayaa lagu daray, dahabku milmay sida iskudhafka cyanide dahab ah
• munaaradda adsorption kaarboon ee firfircoon: Kaarboonka firfircoon ee adsorbs complex cyanide dahab, ka sooca dahabka iyo saxarka
• Burburinta iyo nidaamka korantada: kulul NaOH + sodium cyanide xal, heerka desorption> 98%
• dhoobo dahab ah oo la qaado: waxay ka saartaa wasakhda ka hor intaanad dhalaalin

Xooga saar dhalaalidda & Samaynta Dahabka Dahabka ah

• 1.5-3 ton foornada dhalaalka ee soo noqnoqoshada dhexdhexaadka ah: 1200-1300C, waxay ka saartaa baaruud iyo wasakhda birta
• Waxyaabaha ku jira xalalka birta ee dahabka:>90%
• shubista caaryada garaafka: dahabka caadiga ah ee 100-500g, wareegga dhalaalka 4-6 saacadood
• Kormeerka tayada joogtada ah wuxuu xaqiijinayaa daahirinta dahabku inay buuxiso heerarka qaranka

Ilaalinta Deegaanka & Keydinta Tamarta

• Thickener + filter filter: qoyaan dabada ≤30%, qalalan oo ku urursan kaydka dabada
• Heerka dib u warshadaynta biyaha:> 85%, si weyn u yaraynaysa isticmaalka biyaha cusub
• Unugga daawaynta cyanide: Habka oksaydhka kiimikaad, biyaha wasakhda ah ee cyanide-ku jira oo lagu daweeyay heerka qiiqa hawada ee qaranka
• Hadhaaga qashinka cyanide: la adkeeyey oo la xasiliyey ka hor inta aan la cayimin kaydinta, ka hortagga daadinta
• MQY3660 kubbadda wax lagu shubo soo noqnoqoshada: isticmaalka tamarta ayaa hoos u dhacay 15% vs. qaabka xawaaraha go'an
• Magdhawga garaadka garaadka hooseeya ee korantada yar: qodobka awoodda>0.97

Nidaamka Xakamaynta Automation-ka ee caqliga leh

• Isugeynta awoodda rakiban: 1374kW, beddelka 1600KVA caadiga ah
• Armaajooyinka qaybinta korantada yar + armaajooyinka bilowga jilicsan + armaajooyinka magdhowga tamarta falcelinta
• Qaybaha korantada ee ugu muhiimsan oo leh tilmaamo si habboon loo ballaadhiyey oo loogu talagalay bilawga culeyska deggan
• Nidaamka xakamaynta DCS: la socodka wakhtiga dhabta ah ee cabbirka walxaha, fiirsashada saxarka, wakhtiga leaching, hufnaanta xayeysiinta, culeyska qalabka
• Hal-guji bilaw/joojin, kontorool toos ah oo xidhan, hawlgal aan cidi wadin ee isku xidhka muhiimka ah
• Falanqaynta caqli-galnimada AI: falanqaynta alaabta soo socota ee ku salaysan kamarada, hagaajinta xawaaraha quudinta waqtiga-dhabta ah
• leexashada suunka iyo ogaanshaha jeexjeexa iyada oo aan lahayn dareemayaal dheeraad ah
• Wareegyada firaaqada ah ee loo xafiday dhammaan isku xirka hubinta sii wadida wax soo saarka

Dulmarka Mashruuca

• Codsiga: Macdanta dahabka dhagaxa adag ee baaxadda weyn, gaar ahaan kuwa heerka hooseya ee macdanta iyo mashaariicda farsamaynta
• Soo-saare: Henan Zhongyu Dingli Intelligent Equipment Co., Ltd.
• Habka Muhiimka ah: CIP (Kaarboon Ku Jirta Saxarka) - burburin → shiidid → kala saarid → leaching cyanidation → adsorption kaarboon firfircoon → electrolysis desorption → dhalaalid
• Xudunta Burburinta: DLZGC1250 quudiye + DLEV106 daanka + DLDS430 koorta + 2YK3070 shaashad, wareeg xidhan, ≤400mm ilaa ≤20mm
• Shiidida Muhiimka ah: MQY3660-mashiinka kubbadda shabagga qoyan + DLLXS2011 kala soocida wareega, -200 mesh ≥85%
• Xudunta CIP: Soocidda FX-250 hydrocyclone → leaching cyanidation → adsorption kaarboon firfircoon → electrolysis desorption
• Qiyaasaha CIP ee muhiimka ah: Soo kabashada dahabka>92%, heerka xaalufinta>98%, waxa ku jira dahab>90%
• Xakamaynta garaadka: DCS + falanqaynta kamaradaha AI + shaashada caqliga leh ee warshadaha + la socodka fiidiyaha buuxa
• Halbeegga deegaanka: Dib-u-warshadaynta biyaha> 85%, dareeraha dabada qalalan (≤30% qoyaan), daaweynta biyaha wasakhda ah ee cyanide ilaa heerka qaranka

Socodka Geedi socodka

1. Kahor-Daawaynta Walaxda Ceyriinka & Burburinta - DLZGC1250 quudiyaha gariiraya wuxuu xakameeyaa xawaaraha quudinta 250-300t/saacaddii; DLEV106 burburiyaha daanka wuxuu sameeyaa burburinta aasaasiga ah, hoos u dhigista ≤400mm macdanta ilaa ≤75mm leh birta manganese sare ee birta u adkaysata; DLDS430 burburiyaha koontada iyo 2YK3070 labajibbaaran oo gariiraya shaashadda waxay sameeyaan wareeg xiran, nadiifinta macdanta ilaa ≤20mm iyadoo yareyneysa jajabinta xad dhaafka ah; muraayad dhaqid oo gaar ah ayaa ka saaraysa dhogorta dhoobada si looga hortago xannibaadda iyo hagaajinta soo-gaadhista walxaha dahabka ah; Macdanta u qalma -20mm waxay gashaa qashin-qubka halka aan u qalmin> 20mm macdanta dib-u-jaridda
2. Shiidi & Kala-soocidda Wareegta Xiran - MQY3660 Mashiinnada Kubadda Lattice-qoyan (160kW) waxay shiidaysaa -20mm ore ilaa -200 mesh ≥85%, hubinta kala-soocida buuxda ee walxaha dahabka ah ee macdanta gangue; DLLXS2011 spiral classifier (37kW) ayaa si sax ah u koontaroolaya fiirsashada saxarka 35% -40%, waxay kala saartaa saxarka u qalma (-200 mesh) waxayna ku celisaa qaybo qallafsan mashiinka kubbadda dib-u-shiidka, si wax ku ool ah isaga ilaalinaya qashinka tamarta-shiidka iyo hagaajinta guud ahaan waxtarka shiida
3. Kaarboon CIP ee Saarka Dahabka ah - Saxarka dhulku wuxuu galaa FX-250 hydrocyclone si loogu kala saaro cufnaanta waxtarka>90%, oo leh saxarka cufnaanta sare ee loo hago haanta dheecaanka cyanidation; saxarka waxaa lagu hagaajiyaa pH ugu fiican iyo sodium cyanide waxaa lagu daraa si buuxda u leaching, milma dahab si ay u sameeyaan isku dhafan cyanide dahab ah; saxarka leached wuxuu galaa munaaradda xayeysiinta kaarboonka ee firfircoon halkaas oo kaarboon firfircooni ay xayeysiiso dhismaha cyanide dahabka ah, oo kala soocaya dahabka saxarka; Kaarboonka firfircoon ee dahabku ku shuban yahay waxaa loo diraa nidaamka qallafsanaanta iyo nidaamka elektiroonigga ah (kulul NaOH + xalalka sodium cyanide) oo leh heerka qallafsanaanta> 98%, dhoobada dahabka ah ee ka soo baxdana waa la guray si looga saaro wasakhda.
4. Xakamaynta wasakheynta Cyanide - Qaybta daawaynta cyanide ee u go'an waxay qabataa daawaynta aan waxyeello lahayn ee biyaha wasakhda ah ee cyanide ku jirta iyada oo loo marayo oksaydhka kiimikada, hoos u dhigista nuxurka cyanide ilaa heerarka qiiqa heer qaran oo leh biyaha wasakhda ah ee la daweeyay ee dib u warshadaynta; Haraaga qashinka cyanide-ku ku jiro waa la xoojiyey oo la xasiliyey ka hor inta aan loo qaadin kaydinta kaydinta dabada, ka hortagga daadinta cyanide iyo hubinta badbaadada deegaanka
5. Isku Duubista Dhalinta & Samaynta Dahabka Dahabka ah - dhoobo dahab ah oo la safeeyey oo laga soo qaaday korantada iyo xooga dahabka aan fiicneyn ee kobcinta cufisjiidka ka hor waxaa loo diraa 1.5-3 tan foornada dhalaalidda dhexdhexaadinta inta jeer ee 1200-1300°C; sulfur iyo wasakhda birta ayaa si buuxda loo saaraa, samaynta xal bir ah oo leh wax dahab ah> 90%; Birta dhalaalaysa waxaa lagu shubaa caaryada garaafka iyada oo loo marayo meel loogu talagalay qaboojinta dabiiciga ah iyo samaynta jaangooyooyinka dahabka ah ee 100-500g, oo leh wareeg dhalaalaysa 4-6 saacadood iyo kormeer tayo joogto ah
6. DCS + AI Intelligent Control - Nidaamka DCS wuxuu kormeeraa cabbirka walxaha, fiirsashada saxarka, wakhtiga leaching, hufnaanta xayeysiinta kaarboonka ee firfircoon iyo culeyska qalabka waqtiga dhabta ah, oo leh hal-guji bilaw / joogsi iyo kontorool toos ah oo xiran-loop oo awood u siinaya hawlgallada aan cidi wadin ee isku xirka muhiimka ah; Module AI wuxuu falanqeeyaa agabka soo galaya isagoo adeegsanaya kamaradaha si uu u hagaajiyo xawaaraha quudinta waqtiga dhabta ah, wuxuu ogaadaa leexashada suunka iyo dillaaca iyada oo aan lahayn dareemayaal dheeri ah, oo soo saara digniino hore oo waqtiyeysan; dhammaan isku xirka lagu xafiday wareegyada firaaqada ah ee hubinaya wax soo saarka aan kala go' lahayn

Adeegga EPC

• Naqshadaynta habka CIP ee habaysan ee ku salaysan guryaha macdanta gaarka ah iyo shuruudaha soo kabashada dahabka
• Qalab dhameystiran oo daboolaya burburinta, burburinta, kala soocida, leaching CIP, adsorption, electrolysis desorption iyo hababka dhalaalidda
• Ku rakibida goobta, hawlgelinta iyo xaqiijinta waxqabadka oo leh cabbirka cabbirka CIP
• Barnaamijyada tababarka hawl-wadeenada oo daboolaya hawlgalka nidaamka DCS, xakamaynta habka CIP, maaraynta badbaadada cyanide iyo dayactirka qalabka
• Qaybta daawaynta Cyanide iyo injineernimada u hoggaansanaanta deegaanka
• Qalabaynta iyo dayactirka qalabka wareegga-noloshu-buuxa, cusboonaysiinta farsamada iyo agabka agabka
• Dhammaan qalabka si madax-bannaan loo horumariyo, 100+ shatiyada qaranka, 2,000+ khadadka wax soo saarka ee dalka oo dhan
• Dhisidda dhirta degdega ah: muddada dhismuhu waa la gaabiyay>50% marka loo eego mashaariicda dhaqameed

Xogta Kiiska

• Soo kabashada dahabka>92% iyada oo loo marayo kaarboon CIP isku dhafan ee habka saxarka isku-darka dheecaanka cyanidation iyo xayeysiis kaarboon firfircoon
• Heerka baabi'inta>98% iyada oo loo sii marayo NaOH kulul + sodium cyanide desorption iyo nidaamka korantada
• Waxyaabaha ku jira dahabka>90% ee dahabka caadiga ah (100-500g) oo ay soo saartay dhalaalid soo noqnoqosho dhexdhexaad ah
• DLZGC1250 + DLEV106 + DLDS430 + 2YK3070 burburinta wareegyada xiran waxay hoos u dhigtaa ≤400mm macdanta ilaa ≤20mm
• MQY3660 mashiinka kubbadda (160kW) + DLLXS2011 kala saareyaasha (37kW) wuxuu ku guuleystey -200 mesh ≥85% oo leh diiradda 35% -40%
• FX-250 wax ku oolnimada kala soocida hydrocyclone>90% ee kala soocida cufnaanta saxda ah ka hor intaan CIP
• Wadarta awoodda rakiban ee 1374kW oo leh koronto-bixiye 1600KVA, qodob koronto ah oo magdhow ah> 0.97
• Dib-u-warshadaynta biyaha> 85%, dareeraha dabada qalalan (qoyaan ≤30%), biyaha wasakhda ah ee cyanide oo lagu daweeyay heerka qaran
• Beddelida soo noqnoqda dhagaxa kubbadda waxay yaraynaysaa isticmaalka tamarta 15% vs. qaabka xawaaraha go'an
• Nidaamka DCS + AI wuxuu awood u siinayaa hawlgalka isku xidhka furaha ee aan duuliyaha lahayn ee leh ogaanshaha suunka leexashada iyada oo aan lahayn dareemayaal dheeraad ah

FAQ

Q1: Waa maxay kaarboonka CIP ee habka saxarka iyo sidee ayay u gaadhay in ka badan 92 boqolkiiba soo kabashada dahabka?

Habka CIP (Carbon In Pulp) waa habka soo saarista dahabka halkaas oo saxarka macdanta dahabka ee dhulka lagu daadiyo xal sodium cyanide ah si loogu milo dahabka sida isku-dhafka cyanide-ka dahabka ah, ka dibna lagu dhejiyo kaarboon firfircoon si toos ah saxarka. Kaarboonka dahabku ku raran yahay waxaa lagu farsameeyaa fuuq-baxa iyo electrolysis (kulul NaOH + sodium cyanide xal, heerka xaalufinta>98%) si loo soo celiyo dahabka. Marka lagu daro FX-250 cufnaanta cufnaanta hydrocyclone (wax ku oolnimada> 90%) ee hore u-fiirsashada, nidaamka isku dhafan ee CIP wuxuu gaaraa soo kabashada dahabka> 92%, taasoo ka dhigaysa mid si gaar ah waxtar u leh macdanta dahabka ah ee oksaydhka ah ee hooseeya ee aan si hufan loogu soo celin kala-soocidda culeyska oo keliya.

Q2: Sidee buu khadka wax uga qabtaa walaacyada deegaanka iyo badbaadada ee la xidhiidha cyanide?

Qayb daawaynta cyanide ah oo u go'an ayaa wax ka qabata biyaha wasakhda ah ee ka kooban cyanide iyada oo loo marayo oksaydhka kiimikada, hoos u dhigista waxa ku jira cyanide heerarka heer qaran Hadhaaga qashinka ee Cyanide-ku ku jiro waa la xoojiyey oo la xasiliyey ka hor inta aan loo cayimin kaydinta kaydka dabada si looga hortago daadinta. Habka daawaynta dabada (thickener + filter press) waxa ay hoos u dhigtaa qoyaanka ilaa ≤30% marka la isku dhufto engegan, halka heerka dib u warshadaynta biyaha uu ka badan yahay 85%. Tallaabooyinkani waxay si wadajir ah u xaqiijinayaan u hoggaansanaanta deegaanka oo buuxda inta lagu jiro hawlgalka habaynta CIP.

Q3: Waa maxay sifada caqliga leh ee ay DCS iyo nidaamka xakamaynta AI u bixiyaan khadka habaynta ee CIP?

Nidaamka DCS waxa uu kormeeraa cabbirrada muhiimka ah oo ay ku jiraan cabbirka walxaha, fiirsashada saxarka, wakhtiga leaching, hufnaanta xayeysiinta kaarboonka ee firfircoon iyo culeyska qalabka wakhtiga dhabta ah, taageeraya hal-guji bilowga/joojinta iyo kantaroolka tooska ah ee xidhidhiyaha tooska ah ee hawlgalka aan cidi wadin ee isku xirka CIP ee muhiimka ah. Module-ka AI wuxuu falanqeeyaa agabka soo galaya isagoo adeegsanaya kamaradaha goobta si loo hagaajiyo xawaaraha quudinta waqtiga dhabta ah, ka hortagga xannibaadda qalabka iyo culeyska xad dhaafka ah, wuxuuna ogaan karaa leexashada suunka iyo jeexjeexa iyada oo aan lahayn dareemayaal dheeraad ah. Dhammaan isku xirka korantada waxaa lagu keydiyay wareegyo firaaqo ah, iyo magdhowga garaadka hooseeya ee garaadka magdhowga wuxuu gaaraa qodobka awoodda>0.97, isagoo hubinaya xasilloonida 24/7 hawlgalka habaynta CIP.
